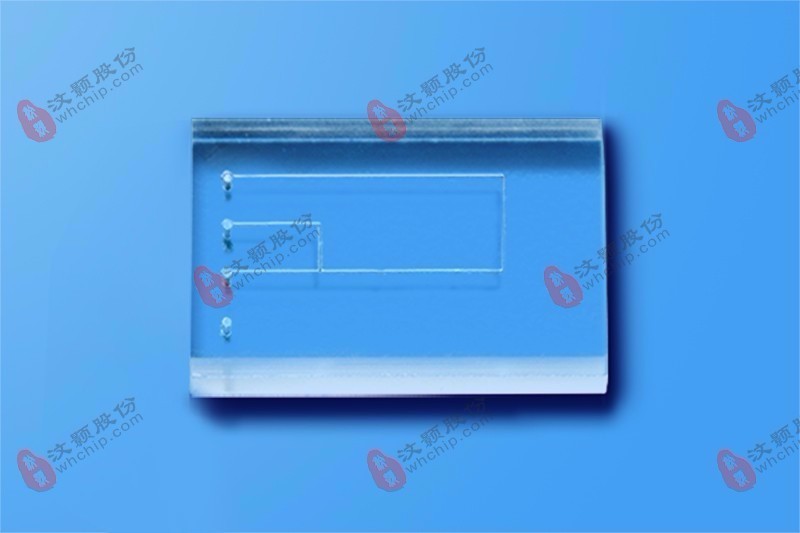

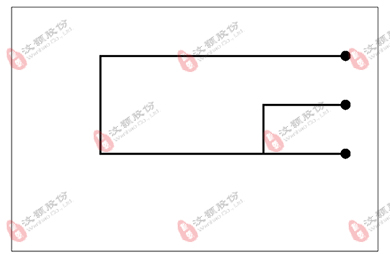

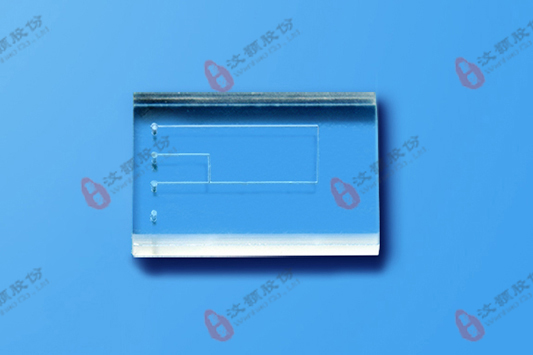

T-channel droplet generating chip (vertical) is a glass microfluidic chip for monodisperse droplet generation. Customers can adjust the continuous water-oil two-phase flow rate, water and oil interface surface tension and other methods in the chip channel to generate different specifications of the droplets.

T-channel droplet generating chip (vertical) Suitable for WH-CF-02 cross-chip chuck developed by our company for quick connection and disassembly. The chip with the WHCF-05 micro-droplet collection and collection device developed by our company can effectively prevent the liquid from disturbing the flow of the droplet and reduce the droplet fusion, so as to achieve the droplet generation and collection and facilitate the droplet splitting, fusion and sample loading Follow-up operation.

At the same time, we provide our customers with different chip customization services to meet different customer needs.

advantage:

1) the channel surface is smooth;

2) wide temperature and pressure tolerance range;

3) good chemical stability and biocompatibility;

4) good optical performance;

5) suitable for chip fixture, enabling quick connection disassembly and drop collection;

6) droplet size control, uniformity;

7) small size, portability and strong.
