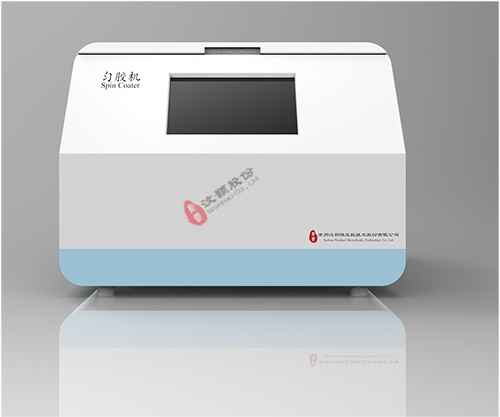

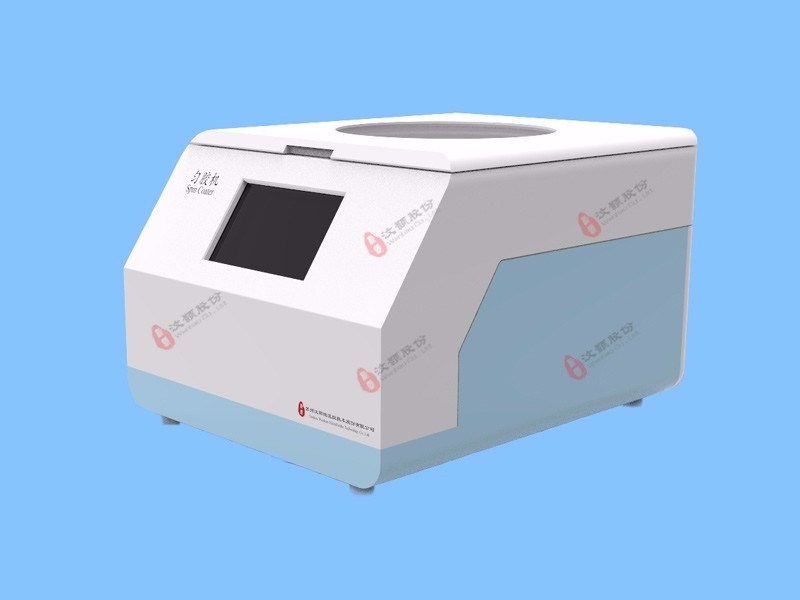

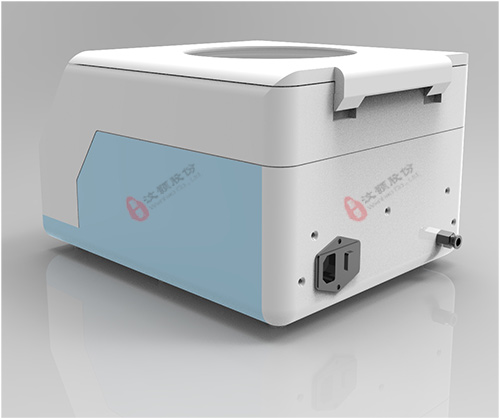

WH-SC-01 Spin Coater for semiconductor technology, plate making and surface coating technology, scientific research, education and other units for scientific research, teaching purposes. Its overall design by WenHao Co., Ltd. independently developed completed with independent intellectual property rights.

Spin Coater fast start and stable speed, to ensure the consistency and uniformity of plastic thickness. Full touch screen control, third gear speed. After the start of the first low-speed spin down, then switch to high speed under the rejection of plastic, speed and the corresponding time were adjustable; start and stop controllable, real-time observation of speed and other functions. The instrument is equipped with "safety switch" button, when the high-speed operation, close the cover, the "safety switch" start, during operation, the cover can not be opened. Can play a protective role.

Desktop  Spin Coater Technical parameters:

speed: 300-4500RPM

time control: 1-10000s

speed stability: ± 1%

plastic uniformity: ± 3%

parameter settings: touch screen settings parameters

Suitable for φ28 to φ200mm silicon and other materials, such as uniform glue

power input: AC220V ± 10V, 50HZ

power: 60W

Weight: 13kg

Dimensions: 300 (W) * 227 (H) * 350 (D)

working environment: temperature 0 ℃ -40 ℃, relative humidity<80%

Technical parameters

speed: 300-4500RPM

time control: 1-10000s

speed stability: ± 1%

plastic uniformity: ± 3%

parameter settings: touch screen settings parameters

Suitable for φ28 to φ200mm silicon and other materials, such as uniform glue

power input: AC220V ± 10V, 50HZ

power: 60W

Weight: 13kg

Dimensions: 300 (W) * 227 (H) * 350 (D)

working environment: temperature 0 ℃ -40 ℃, relative humidity<80%

Technical parameters

speed: 300-4500RPM

time control: 1-10000s

speed stability: ± 1%

plastic uniformity: ± 3%

parameter settings: touch screen settings parameters

Suitable for φ28 to φ200mm silicon and other materials, such as uniform glue

power input: AC220V ± 10V, 50HZ

power: 60W

Weight: 13kg

Dimensions: 300 (W) * 227 (H) * 350 (D)

working environment: temperature 0 ℃ -40 ℃, relative humidity<80%

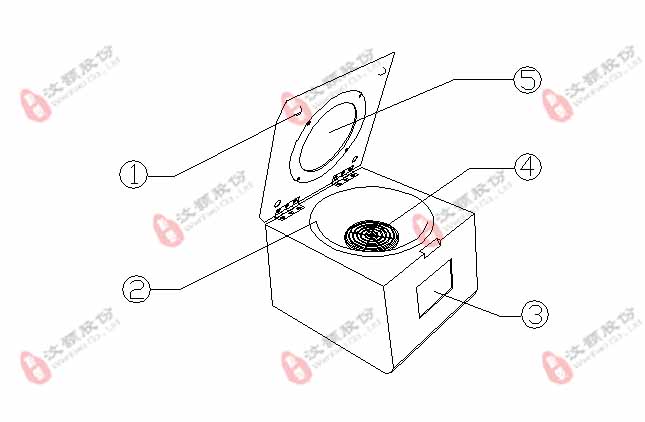

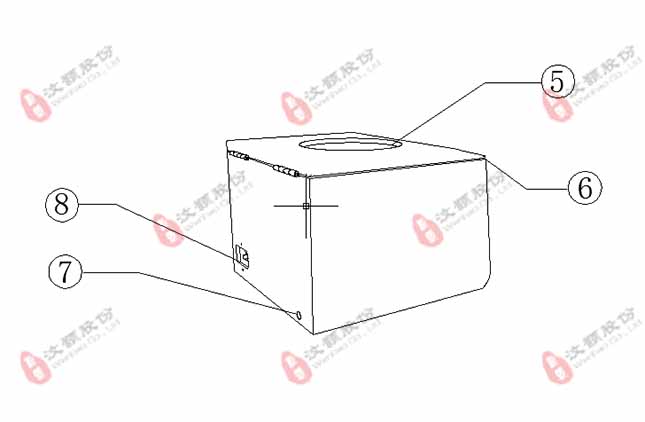

① crash pad ② even plastic tray ③ touch screen ④ special suction plate ⑤ observation window ⑥ cover ⑦ exhaust hole ⑧ power jack and switch
